Pole Vaulting

Dima is a well-known and internationally recognized leader in landing systems. By listening to individual feedback over several generations of pole-vaulters, and by staying close to the sport, Dima provides high quality pole vault landing system and ensures: - Safety and comfort for the athletes. - WA and FFA certifications and knowledge of regulations. - A broad range of landing system for every levels and budgets. - Product quality / durability at competitive prices.

I - Regulation

In order to simplify the product classification and help you finding the adapted product for your needs, we created a code according to the F.F.A and W.A regulations.
« F.F.A & W.A national level », conform to W.A and F.F.A regulations and standards for national meeting and championships.
« F.F.A & W.A World Athletics level », conform to W.A and regulations and standards for international competitions (championships, Olympics games …).
Our W.A certified product have been officially approved by the international federation (WA).

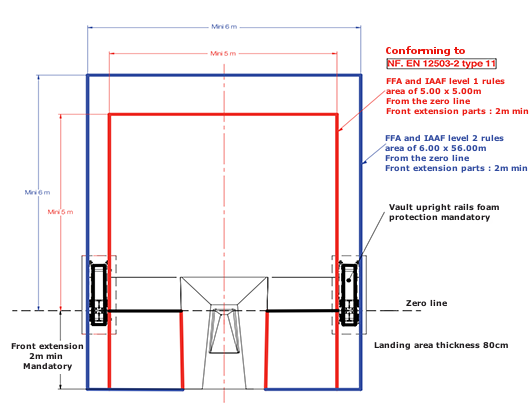

F.F.A and W.A national level

- Landing system :
Minimum dimensions of
from 5.00 x 5.00 x 0.80 m
(not including front extensions)
- Front extensions :
Minimum length of 2 m
Overall dimensions : 7.00 x 5.00 x 0.80 m

W.A World Athletics level

WA Competition and Technical rules 28.12 (2024 edition): For World rankings competitions of: 1.a) World Athletics Series ; 1. b) Olympic Games ; 1. c) The athletics programme of games and other Athletics Competitions with participants from different Areas ; 2. a) Area Championships (of all types and disciplines) ; 2. b) Intra-Area Championships.

- Landing system :
Minimum dimensions of
de 6.00 x 6.00 x 0.80 m
(not including front extensions)
- Front extensions :
Minimum length of 2 m
Overall dimensions : 8.00 x 6.00 x 0.80 m

Tested in laboratory conditions,
our landing systems are conform to
NF EN 12503-2 type 11 standards,
as required by federation rules.

Regulation at all levels ( F.F.A & W.A) require "protection of pole-vault uprights bases using padding made from the appropriate materials"
See pole-vault standard base
The white " zero line" is shown ON ALL DIMA LANDING SYSTEM in compliance with F.F.A & W.A regulations.

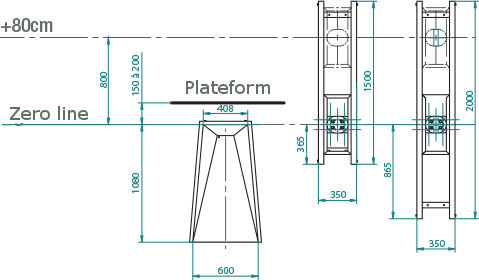

Vault box and rails installation

DIMA

advice

Do not hesitate to forecast multiple vault boxes when it’s possible. You won’t be limited for your landing system location and it will be easy to adapt the jumper run according to the wind direction.

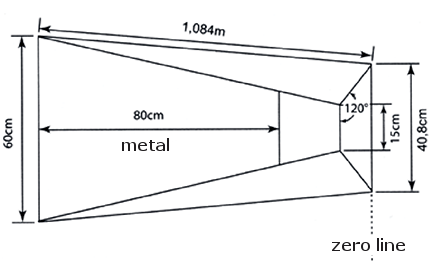

There is different types of vault boxes, the classical vault boxes and the removable vault boxes.

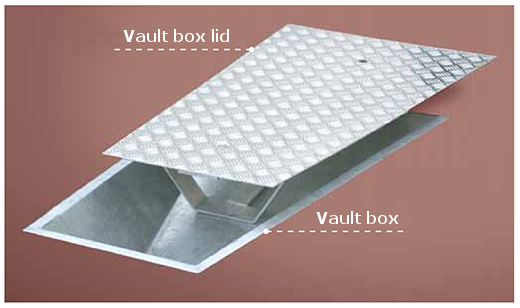

The classical vault boxes with its lid allows to protect the vault box from bad weather but this lid is not designed to support heavy weights or to run on.

Réf 11120 Vault box
Réf 11110 Vault box lid
Réf 11111 Vault box lid adjustable to be surfaced

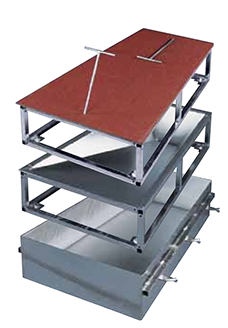

Ideal for indoor use, this complete system ( frame, vault box, lid), enables the runway to be used for multiple disciplines. The unit can be perfectly fixed, with good stability, to achieve a completely safe support.

Réf 11130 Removable galvanised vault box ( frame - vault box - Lid)

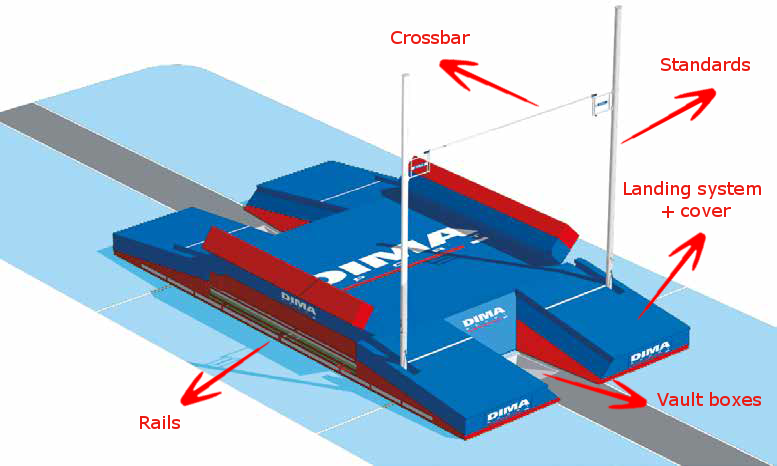

II. Pole vault facilities layout

Landing system
Landing systems + weather cover
Platforms
Rails for Pole-vault standards
Pole-vault standard upright pad
Pole-vault standard base pad
Pole-vault standards
Vault boxes
Water drainage domes
Sheds

Accessories
Crossbars 4.50 m
Foam elastic crossbars
Crossbars cart
Crossbar placer
Pole-vault height gauges
Pole-vault standards upright adjustment indicator cart
Pole-vault upright adjustment indicator cart
Crossbar rack
Take-off markers
Chalk bowl
Wind sock

Pole
Pole rack
Pole bag
Pole car rack
Pole
Shed for pole storage

III. What type of landing system should you choose ?

Dima manufactures 3 types of landing systems providing optimal suitability for every project

1. Modular system

Composition : Air foam units individually encased, lockable, interchangeable and transportable, covered with a 7 or 10cm thick anti-spike top pad, for a uniform, comfortable and flexible landing system.
Advantages :
• Good level of comfort
• Reversible blocks for an optimal product durability
• Easy assembling, moving, and storage (for pole vaulting landing area, it's easy and quick to moove the area in accordance with the wind direction).

2. Comfort plus single cover landing system

Composition : Airfoam units encased in a single cover, covered by a 7 or 10cm anti-spike top pad for great comfort and flexibility.
Advantages :
• Very good quality/price balance

3. Single cover landing system

Composition : Airfoam units encased in a single cover, with the top surface made of anti-spike fabric.
Advantages :
• Price

For your outside landing system, think about a shed :
Standard pole vault shed protect your landing system against bad weather and vandalism.

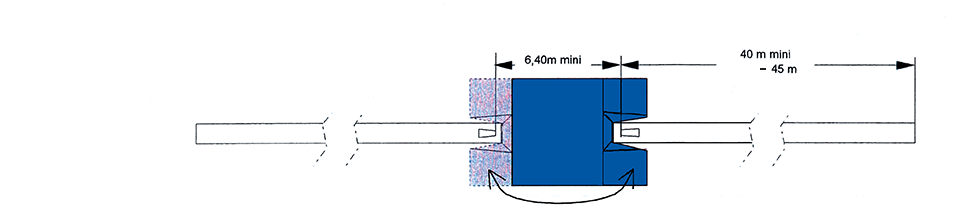

IV. Double front landing systems

Double front landing systems ensure an easy adaptation to the wind direction, without moving the landing system.
It ensures time saving, safe conditions and good performances.

To choose your landing system size, take into account the distance between the vault boxes.

Custom-made landing-systems

How to install your pole-vault post rails

Standard rails

Linear meter rails (ml)

Linear meter sealed rails (ml)

Pole vault facilities layout :

Reversed area, with moving extensions

V. DIMASPORT POLE-VAULT LANDING SYSTEM RANGE RECAP

CLASSICAL POLE VAULT LANDING SYSTEM

Product name	Dimension	Regulation level
BASIC LANDING SYSTEM	5.00 x 4.25 x 0.60/0.40 m	SCHOOL / INITIATION
Ref 17250 Modular
CLUB LANDING SYSTEM	6.30 x 5.00 m	CLUB / TRAINING
Ref 19160 Modular	6.30 x 5.00 x 0.80/0.50 m
Ref 19165 Comfort plus single cover	6.30 x 5.00 x 0.80/0.50 m
Ref 19166 Single cover	6.30 x 5.00 x 0.73/0.43 m
MEETING LANDING SYSTEM	7.00 x 5.00 x 0.80 / 0.50 m	F.F.A / W.A national level
Ref 13800 Modular
Ref 13804 Comfort plus single cover
Ref 13802 Single cover
REVERSIBLE LANDING SYSTEM	7.00 x 5.00 x 0.80 / 0.50 m	F.F.A / W.A national level
Ref 13835 Modular
FEDERAL LANDING SYSTEM	7.00 x 5.00 x 0.80 / 0.50 m	F.F.A / W.A national level
Ref 14066 Modular
Ref 14068 Comfort plus single cover
Ref 14069 Single cover
INTERNATIONAL LANDING SYSTEM	8.00 x 6.00 m	F.F.A / W.A World Athletics level / CERTIFIED
Ref 13710 Modular	8.00 x 6.00 x 0.87/0.47 m
Ref 13712 Comfort plus single cover	8.00 x 6.00 x 0.80/0.50 m
Ref 13717 Single cover	8.00 x 6.00 x 0.80/0.50 m
Ref 13713 Single cover	8.00 x 6.00 x 0.80/0.50 m
CONCEPT IV LANDING SYSTEM	9.50 x 6.20 x 0.87 / 0.37 m	F.F.A / W.A World Athletics level / CERTIFIED
Ref 13739 Modular
MAJOR CHAMPIONSHIP LANDING SYSTEM	10.00 x 7.00 x 0.87 / 0.47 m	F.F.A / W.A World Athletics level / CERTIFIED
Ref 19120 Modular

DOUBLE-FRONT LANDING SYSTEMS

Designation	Dimension	Regulation level
REVERSIBLE LANDING SYSTEM	7.00 x 5.00 x 0.80/0.50 m	F.F.A / W.A national level
Ref 13835 Modular
MEETING DOUBLE-FRONT LANDING SYSTEM	10.00 x 5.00 x 0.80/0.50 m	F.F.A / W.A national level
Ref 19140 Modular
Ref 19142 Comfort plus single cover
Ref 19143 Single cover
INTERNATIONAL DOUBLE-FRONT UP & DOWN LANDING SYSTEMS	11.00 x 6.00 m	F.F.A / W.A World Athletics level
Ref 19140 Modulaire	11.00 x 6.00 x 0.87/0.47 m
Ref 19142 Monohousse confort plus	11.00 x 6.00 x 0.87/0.57 m
Ref 19143 Monohousse	11.00 x 6.00 x 0.80/0.40 m
